Digital Intra Oral Sensor, HDI-2000 Sensor#1.5 (Vatech Humanray)
0
HDI-2000
The premium choice for your image
Description
Overview

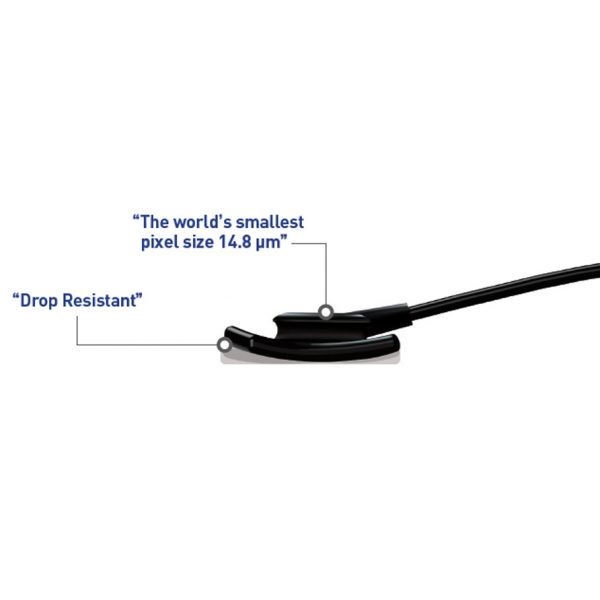

- Superior image on advanced CMOS technology
- Strict quality controlled product

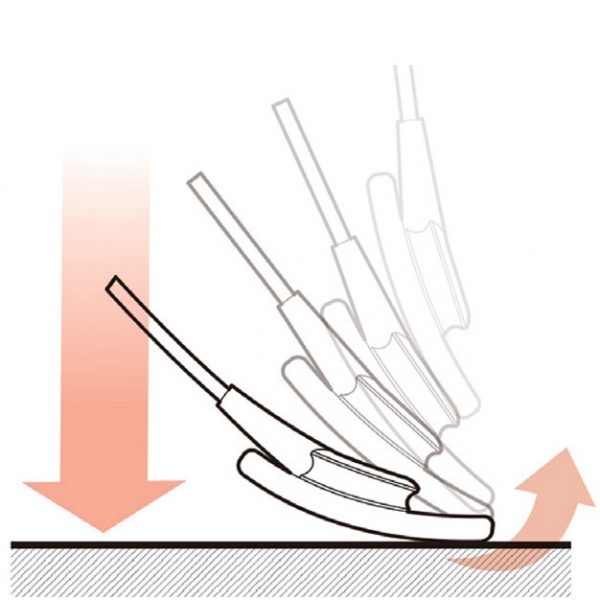

- Assured cable durability by 25,000 times cable bending test
- Ergonomic Rounded Corner Design
- Unique and flexibile commector design
Specification
| Scintillator | Csl : TL with FOP |
|---|---|
| Active Area | 24 x 33 mm / 26 x 36 mm |
| Active Pixels | 1,200 x 1,650px 1,300 x 1,800px |
| Pixel Pitch | 20 ㎛ |
| Limiting Resolution | 25 lp/mm |
| A/D Conversion | 12 bits |
| Frame Rate | Static |
| Interface | Direct USB (Cable Length : 2.7 m) |
| Energy Range | 50~100 kVp |
| Dimension(W x L x H) | 29.2 x 38.7 mm / 31.5 x 42.8 mm |
| Weight | – |
The specifications listed on this website are subject to change without prior notification.
